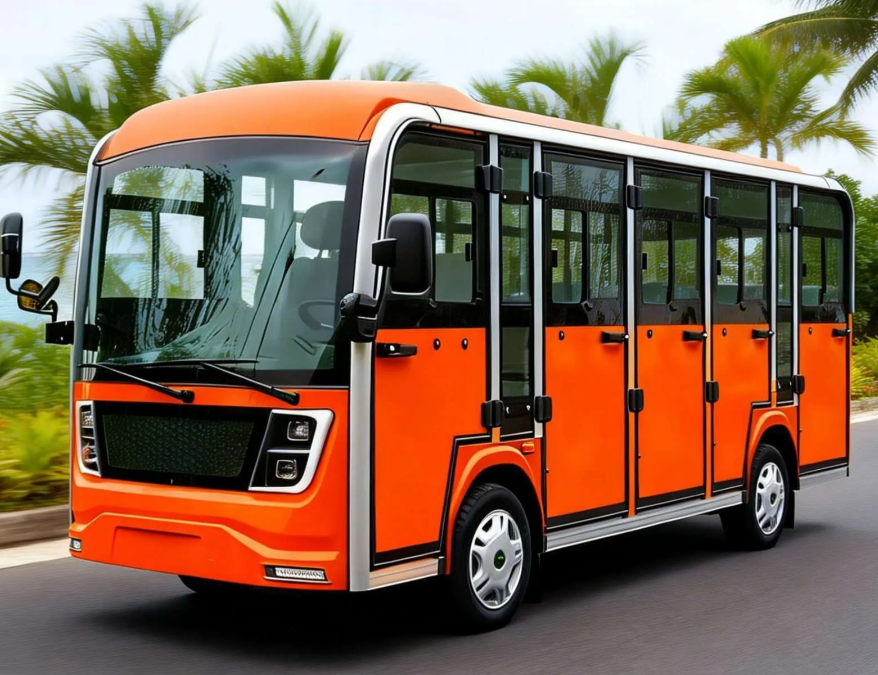

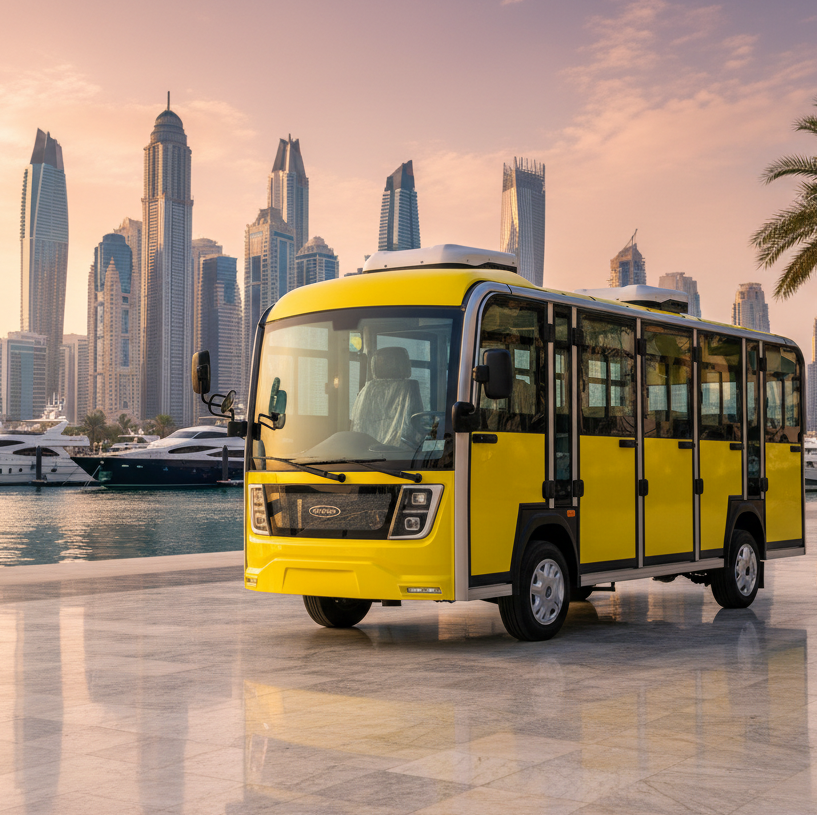

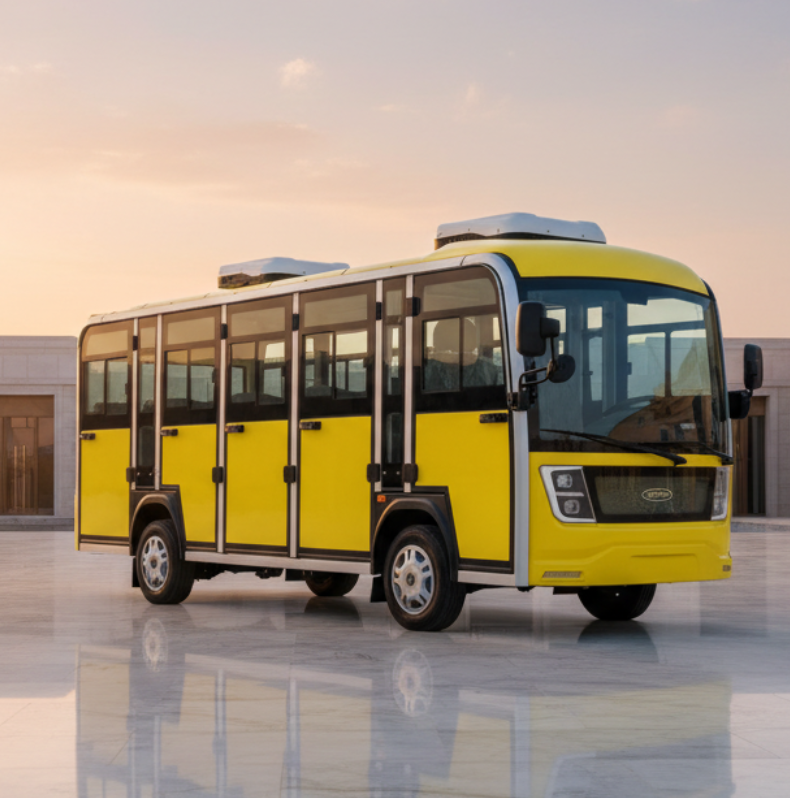

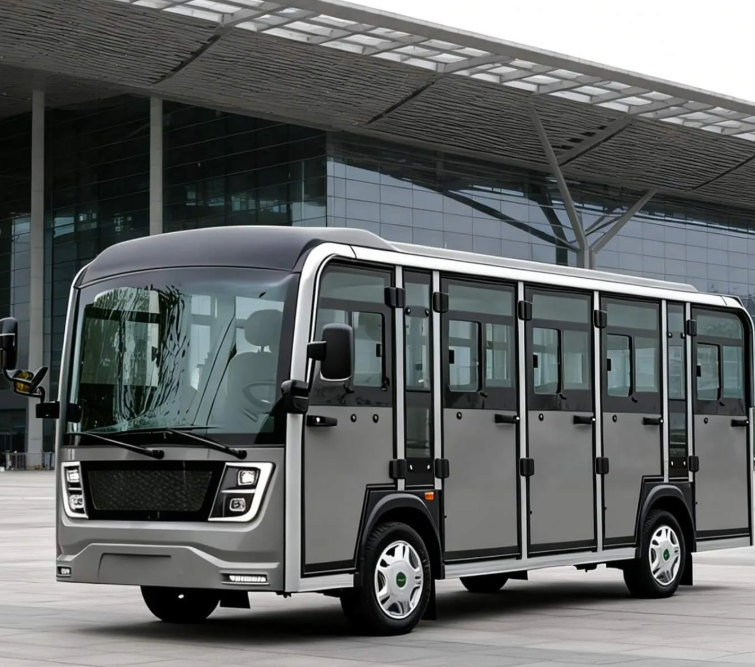

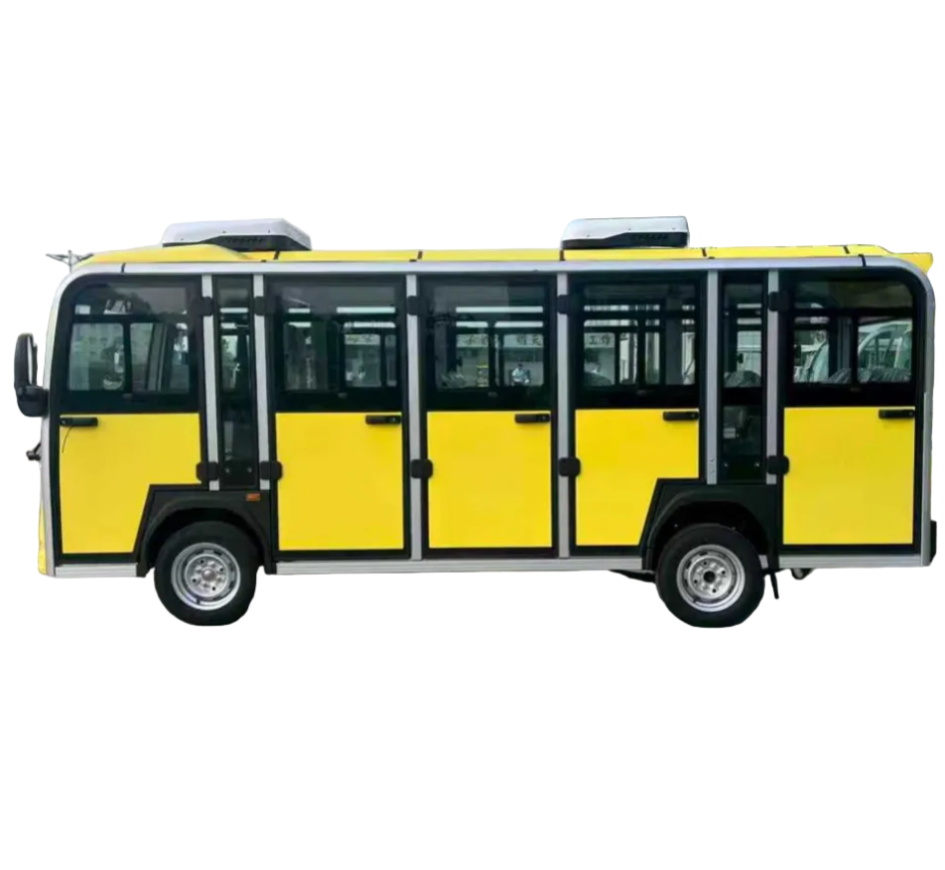

Luxury Lvton Electric Site seeing Shuttle 14Passenger For Hotels and commercial use
Application -palace with long walkways ,Hotels & Resorts, property developers , touristic locations , theme parks , water parks , Water Front properties , outdoor event planners ,
Motor Power:
72V/7.5 kw
Max Speed:
30 km/h
Max Mileage:
70-90 Km
Climbing:
15%
Features
Airconditioned
14 sitting capacity
Luxurious trims
Elegant looking
Large Storage space
Leather seats
Premium dash board and steering compartment
Safety features
Hand brakes for safety
Turn signals
seat belts for passengers
FULL SPECIFICATIONS
Seating Capacity 14 passengers
Maximum Speed 30 km/h
Range (flat road) 70–90 km
Braking stability 1.9m
Maximum Climbing Grade 15%
Minimum Ground Clearance 140mm
Slope performance 17%
Wheelbase 2670 mm
Minimum Turning Radius 6.3 meters
Tread Width Front 1320 mm / Rear 1330 mm
Braking Distance <5 meters
Energy Consumption 13.6 kwh
Dimensions (L x W x H) 4970*1510*2040 mm
Total Vehicle Weight 1480 kg
Electrical System
Controller Lvtong exclusive AC controller
Battery Lvtong exclusive maintenance-free battery 6V, 12 units, 170AH (3-hour rate)
Motor Lvtong high-performance AC asynchronous motor 72V/7.5KW
Charger Intelligent charging machine for car computer 72V/25A, charging time <8 hours (with 80% charging efficiency)
DC Converter High power isolated DC converter,72V/12V-400W
Windshield & Wipers Laminated safety glass+wiper
Roof Modified PP engineering plastic injection molding
Seat Ergonomically designed seats, artificial leather covering
Flooring Aluminum profile anti slip floor with high-strength structure, corrosion-resistant and aging-resistant.
Body The front cover, roof, etc. are injection molded with modified PP material.High standard aluminum alloy welding forming front and rear frames, aluminum profile welding seat barrels
Mirrors Folding external rearview mirrors on both sides
Lighting Front combination headlights, daytime running lights, position lights
LED taillights; Snail horn, reverse buzzer
Body Configuration
Windshield & Wipers Laminated safety glass+wiper
Roof Modified PP engineering plastic injection molding
Seat Ergonomically designed seats, artificial leather covering
Flooring Aluminum profile anti slip floor with high-strength structure, corrosion-resistant and aging-resistant.
Body The front cover, roof, etc. are injection molded with modified PP material.High standard aluminum alloy welding forming front and rear frames, aluminum profile welding seat barrels
Mirrors Folding external rearview mirrors on both sides
Lighting Front combination headlights, daytime running lights, position lights
LED taillights; Snail horn, reverse buzzer
Internal Configuration
Dashboard Instruments Injection molding instrument panel, CAN communication combination LCD instrument panel, electric lock switch, combination switch, multimedia player
Steering System Bi-directional rack and pinion steering system with automatic gap compensation
Suspension System Front disc rear hub four-wheel hydraulic brake+handbrake parking+Electric vacuum assisted braking system
Front Suspension MacPherson independent suspension; Spiral spring+cylindrical hydraulic shock absorber
Rear Suspension Integrated rear axle, 16:1 speed ratio, steel plate spring+cylinder hydraulic shock absorber
Tire Dimensions 165/70R13C vacuum tire (diameter 560mm); 13 inch iron steel ring
